Comment:

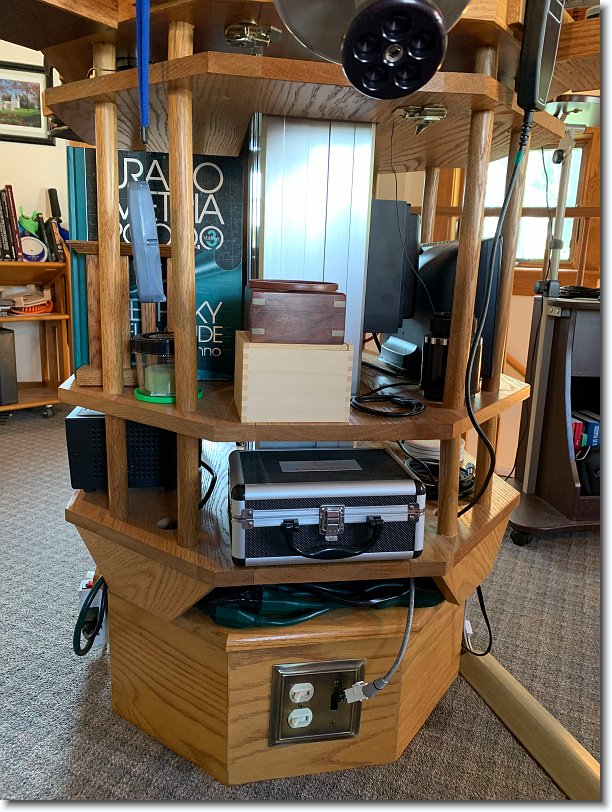

The shelf below the main shelf is for the power supply and serves as a collection point for power blocks.

Caddy_20 * Attached via velcro under the mobile tray is an 8 outlet surge protector providing power close to the telescope. * 4032 x 3024 * (3.28MB)

Caddy_21 * 3024 x 4032 * (4.47MB)

Caddy_22 * 4032 x 3024 * (2.99MB)

Caddy_23 * The main shelf of the Caddy holds reference books and a musical system (CD, radio and iPod). Here are a few reference books. * 4032 x 3024 * (4.71MB)

Caddy_24 * The shelf of the Caddy that holds the reference books has a musical system (CD, radio and iPod) on the opposite side. Here is the music system. * 4032 x 3024 * (3.61MB)

Click for the original image

	Caddy_25.JPG - 4032 x 3024 - (4.53MB)
10/7/20 11:08 AM

Caddy_26 * Running through the south side of the Caddy is a hole that allows the wires connected to the Paramount to effortlessly ride up and down as the Pier-Tech 3 lifts and lowers the telescope assembly. * 4032 x 3024 * (3.75MB)

Caddy_27 * The wires are blocked from interfering with the movement of the Pier-Tech 3 by a wooden shield. * 4032 x 3024 * (4.05MB)

Caddy_28 * Looking down the hole through all of the layers of the Caddy. * 4032 x 3024 * (2.52MB)

Stargate4173 * Stargate 4173 at Grimaldi Tower. * 3024 x 4032 * (6.6MB)
