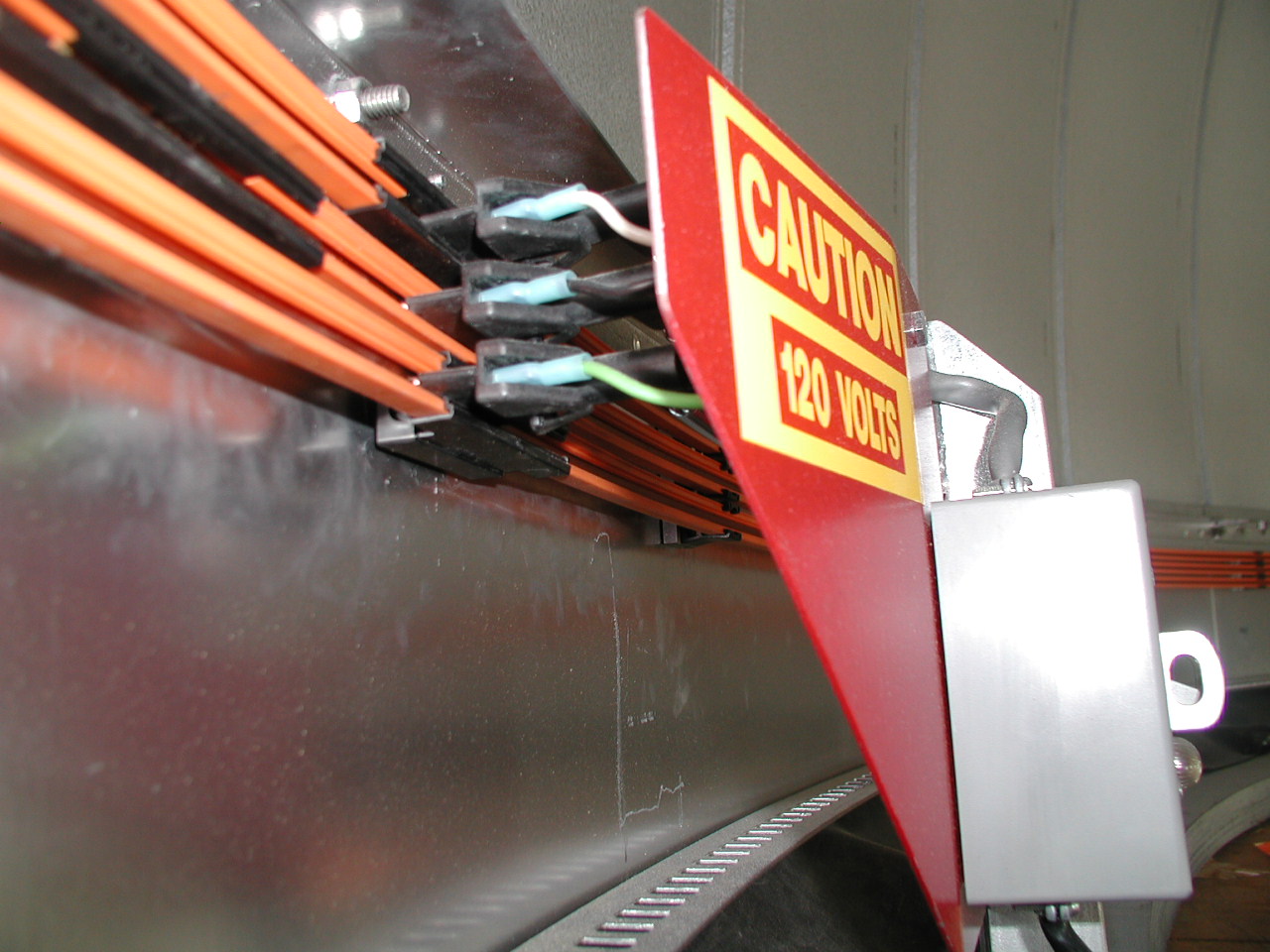

In order for the control panel for the upper shutter door motor and lower winch motor to have continuous power no matter which way the dome was rotated, power was delivered to the motors via these orange circular contactor bars.
